LBO2000 Landscape Body Open

LBO2000 Landscape Body Open

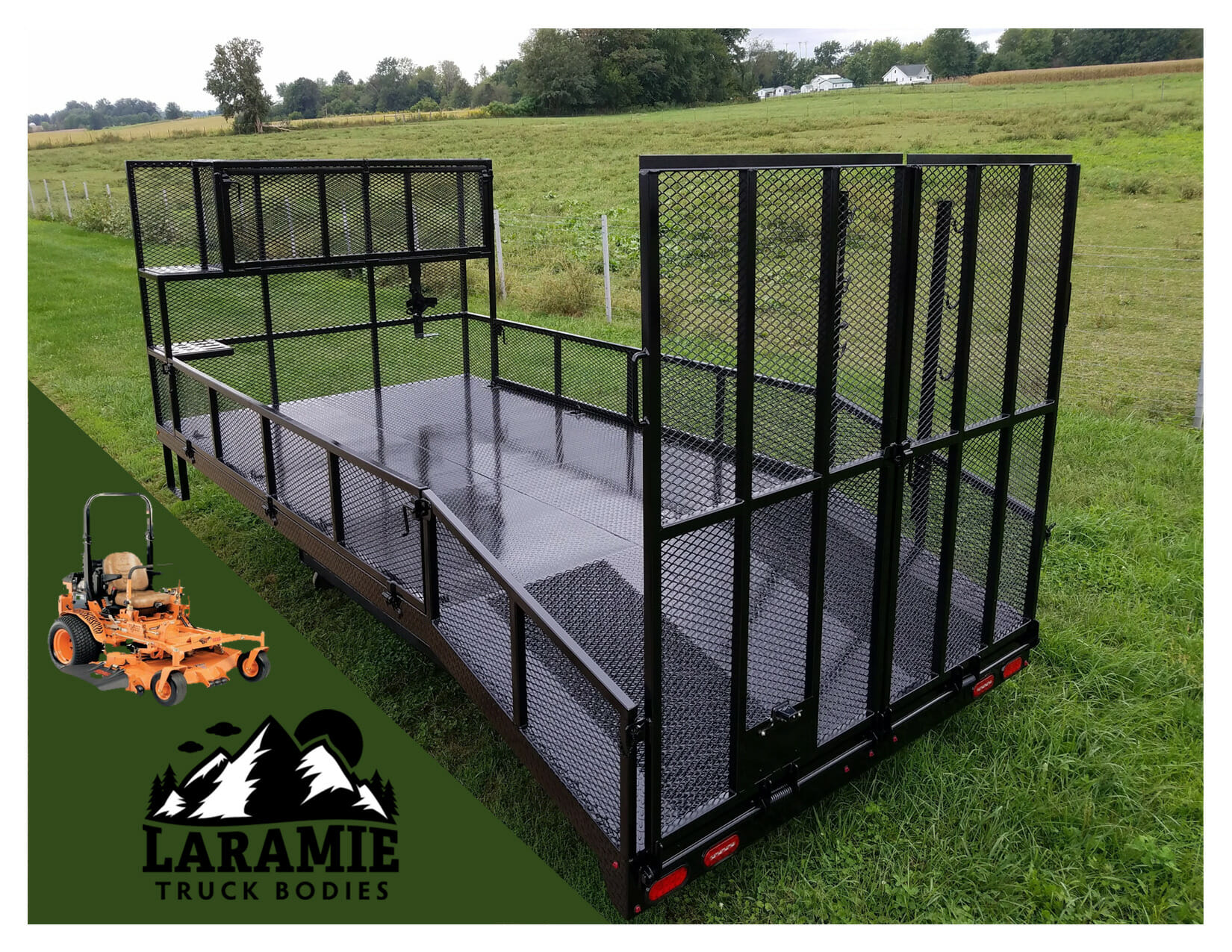

Introducing our open landscape body designed specifically for every landscaping need. This versatile truck body features a robust construction with 4″ structural channel longsills and 3″ structural channel cross members spaced 12″ apart. The 10 ga. diamond plate floor, 5′ double break beaver tail, and perimeter wall provide durability and containment. With a 60″ high bulkhead frame, integrated storage box, shovel holder, water jug holder, 3 position lockable trimmer rack and expanded metal fold down sides, you have ample storage space and security. The truck body also includes 5′ spring-assisted 6K loading ramps, recessed D-rings, LED lights, and a professional finish with Imron® coating. Trust Laramie Truck Bodies for a reliable and efficient solution to meet your landscaping requirements.

Specifications

Lengths

15', 17', 19', 21'

Outside Width

96"

Inside Width

93"

Weight Range

2219-2707

Standard Features

  • 4″ structural channel longsills
  • 3″ structural channel cross members, 12″ o.c.
  • 10 ga. diamond plate floor, including 5′ double break beaver tail w/raised mesh for traction
  • 60″ high, 1-1/2″ tubing bulkhead frame w/expanded metal, 18″ side returns, integrated 18″ x 24″ x 80″ top storage box w/lockable hasp, and shovel rack
  • Perimeter wall – 18″ high 1-1/2″ tubing frame w/expanded metal fold down sides, and permanent beaver tail sides
  • 2 – 60″ long (45″ wide) expanded metal, spring assisted, 6K loading ramps
  • 5 – inset D-rings on the floor per side (more optional)
  • Water jug rack and 3 position lockable trimmer rack on passenger side
  • 2 – 18w LED work lights
  • 4 – 6″ LED oval stop/turn/tail and reverse lights with marker and clearance light kit. Includes wiring harness.
  • Sand blasted and painted with 2 coats of Imron® 3.1 HG-D™M + Polyurethane High Gloss DTM

Available Options

  • Additional D-rings
  • 12v Winch
  • Distributor bulkhead
  • 6′ Ramps
  • Removable beaver tail
  • Custom sizes

Request a Brochure

We understand the importance of having all the information you need when making important business decisions. That’s why we offer a sales brochure that provides a detailed overview of our products, including specifications, features, and customization options.

Request a Brochure
  • 3-year or 36,000-mile Limited Warranty

Laramie Truck Bodies offers a 3-year or 36,000-mile limited warranty on all truck bodies and associated products, provided they are properly maintained and not damaged due to misuse or accidents, and claims can be made by contacting an authorized dealer or customer service, subject to inspection and approval by Laramie Truck Bodies.
